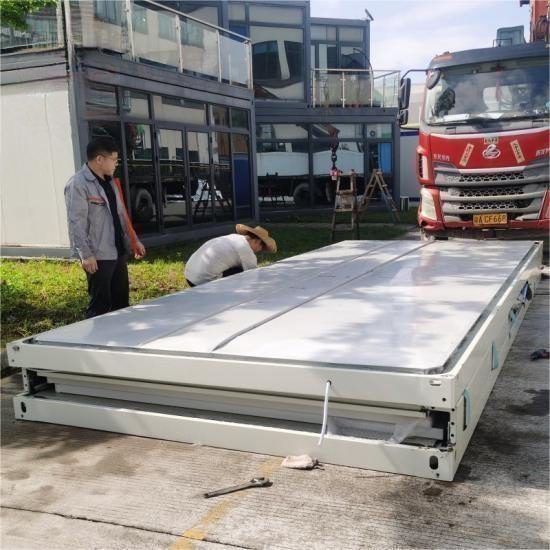

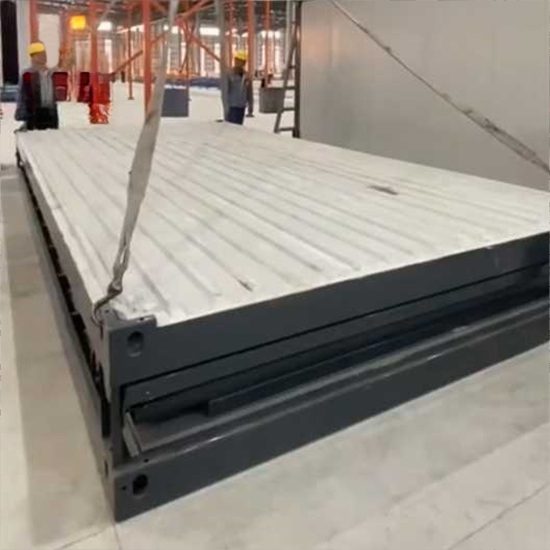

| Product Specifications | Folded Height | H=440mm 40HQ can load 10 sets |
| L*W*H(mm) | 5830mm*2500mm*2470mm Inner size: 5650mm*2320mm*2200mm |
|
| Roof Form | Flat Roof | |
| Number Of Layers | ≤2 layers | |
| Structure | Column | Specification 50mm*160mm Roller Beam Material Thickness 2.3mm Material Q235B |
| Roof Main Beam | Specification 50*160mm Roller Beam Material Thickness 2.3mm Material=Q235B |
|
| Roof Secondary Beam | Galvanized Cold Rolled Section Steel C Type Material Thickness=1.0mm 6 Pices Material Q235B |
|
| Ground Main Beam | Height 50*140mm Roller Beam Material Thickness 2.3mm Material=Q235B |
|
| Ground Secondary Beam | Galvanized Cold Rolled Section Steel C Type Material Thickness 1.5mm 9 Pices Material=Q235B |
|
| Bolt | 8.8 Class High-Strength Bolts, 6 | |
| Paint | Electrostatic spraying plastic powder baking varnish ≥80μm | |
